Base To Bore Centerline
3.5000 in
-
Bearing Series
216 Series
-
Bolt Center Diameter
0.8750 in
-
Bolt Center To Center Length
8.5000 to 9.5000 in
-
Bore Diameter
2-15/16 in
-
Bore Length
2.3800 in
-
Country of Origin
US
-
Dynamic Load Capacity
17407 lbf
-
Expansion Capability
Non-Expansion (Fixed)
-
Expansion Type
Non-Expansion Bearing (Fixed)
-
Grease Type
Unirex N2
-
Height
3.7
-
Housing Construction
Solid
-
Housing Material
Cast Iron
-
Housing Type
Two-Bolt Pillow Block
-
Insert Material
Steel
-
Length
12.4
-
Locking Device
Set Screw
-
Lubrication
Grease
-

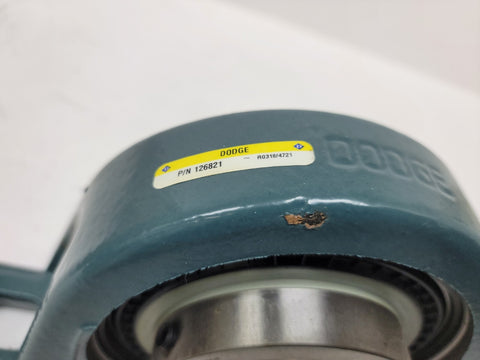

Manufacturer Catalog Number
126821
-
Maximum Speed
1000 rpm
-
Mounting Type
2-Bolt Base
-
Radial Dynamic Load Capacity
17407 lbf
-
Radial Static Load Capacity
13102 lbf
-
Relubricatable
Yes
-
Seal Type
Single-Lip Contact
-
Sealing Type
Single-Lip Contact
-
Sensor Ready
Adapter Required
-
Shaft Attachment
Setscrew
-
Shaft Diameter
2.9375 in
-
Standoff Included
No
-
Product Type

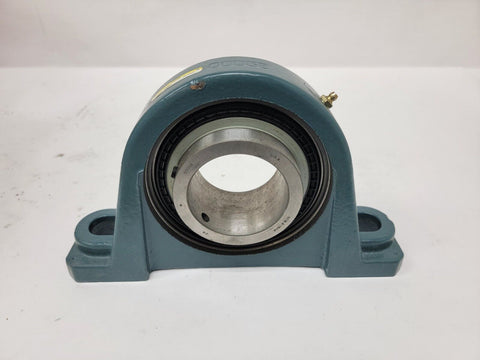

Pillow Block Ball Bearing Units
-
Static Load Capacity
13102 lbf
-
Suitable For High Temp App
No
-
Suitable For Washdown Environment
No
-
Take Up Frame Size
LD-50,TS-400
-
Type
Pillow Block Set Screw Bearing
-
Type Of Bearing
Ball
-
Weight
18.7
-
Width
8.1
