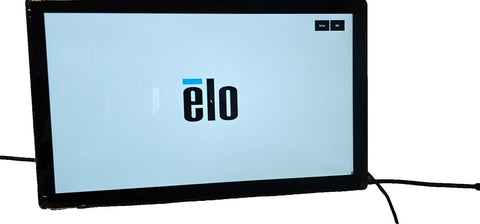

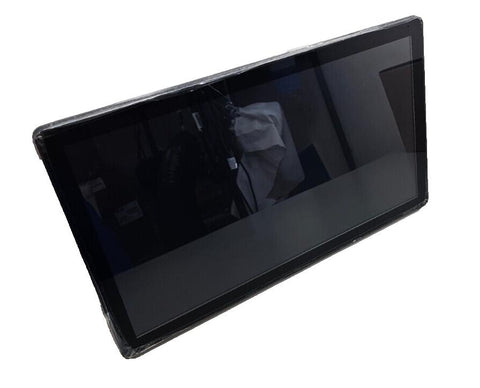

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
BrandElo
Product LineElo I-Series 2.0
ModelESY22i3
ManufacturerElo TouchSystems
Processor
Clock Speed3.2 GHZ
CoresQuad-Core
Processor BrandIntel
Processor Generation9
Processor Main FeaturesIntel Smart Cache

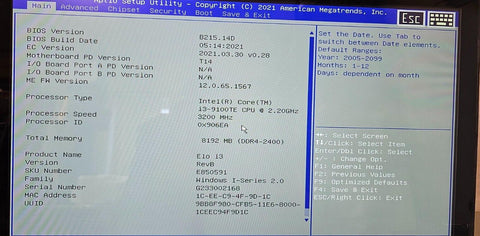

Processor NumberI3-9100TE
Processor TypeCore i3
Processors Installed1
Total Processor Supported1
Memory
Available Memory Slots1
Cache Memory Installed6 megabyte
Configuration Features1 x 8 GB
Max Memory Supported32 GB
Memory Slots2
Memory Speed2666 megahertz
Memory TechnologyDDR4 SDRAM
RAM Installed8 GB
Rated Memory Speed2666 megahertz
Storage
Drive TypeNo optical drive
Hard Drive Capacity128 GB
Installed Quantity1
Optical Drive TypeNo optical drive, None
Optical Drive Type (2nd)None
SSD Form FactorM.2
Storage (2nd)None
Storage (3rd)None
Storage (4th)None
Hard Drive Interface TypeSSD
Network & Communication
Compliant StandardsBluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Link ProtocolsBluetooth 5.0, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless LAN802.11a/b/g/n/ac, Bluetooth 5.0
Wireless LAN SupportedYes
Connectivity
Interface Provided1 x headphones/microphone, 1 x LAN (Gigabit Ethernet), 1 x USB 3.0, 4 x USB - micro-USB
Display & Graphics
Aspect Ratio16:9
Display Image Brightness225 candela per square metre
Display Contrast Ratio1000:1
Display Resolution AbbreviationFull HD
Display TechnologyLED
FeaturesTouchPro technology

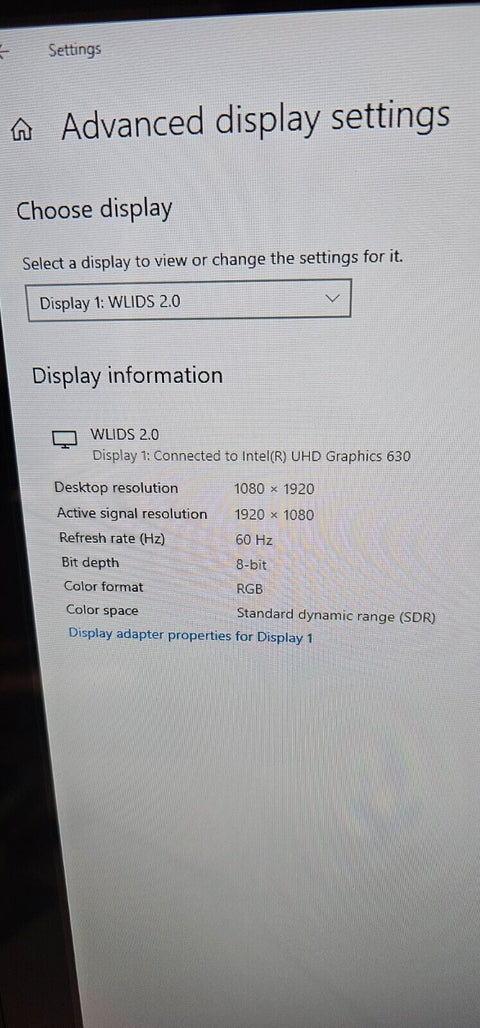

Graphics Controller ModelIntel UHD Graphics 630
Graphics Processor SeriesIntel UHD Graphics
Horizontal Viewing Angle+89 / -89
Native Resolution1920 x 1080
Response Time14 millisecond
Screen Size21.5 inch
Screen Size (metric)54.6 centimetre
TouchscreenYes
Vertical Viewing Angle+89 / -89
Widescreen DisplayYes
Audio
Speaker Output ModeStereo
Power
Frequency50/60 hertz
Power Consumption Operational77 watt
Power Device TypePower adapter
Power Provided100 watt
Software

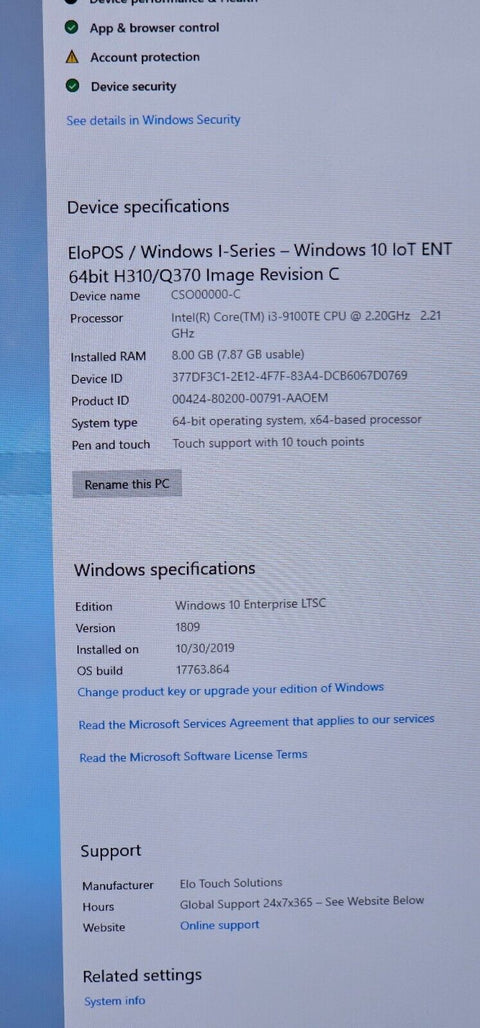

Operating SystemWindows 10 IoT
Operating System EditionWindows 10 IoT Enterprise LTSC 64-bit Edition
Operating System PlatformWindows
Software TypeIntel Active Management Technology 11.0
Technical Information
Chipset TypeIntel H310
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Form FactorAll-in-one
Form Factor (RAM)SO-DIMM 260-pin
Max Operating Temperature95 degree Fahrenheit
Min Operating Temperature32 degree Fahrenheit
Operating Humidity20 - 80% (non-condensing)
Product Information
CountryWorldwide

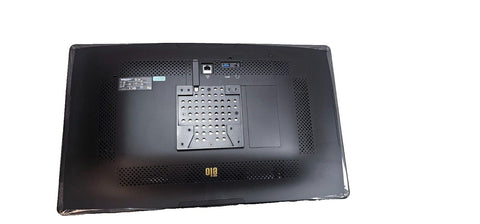

Flat Panel Mount Interface100 x 100 mm, 75 x 75 mm
Manufacturer Form FactorAll-in-one
Packaged Quantity1
Product TypePersonal computer
Security Slot TypeKensington security slot
Theft ProtectionSecurity lock slot (cable lock sold separately)

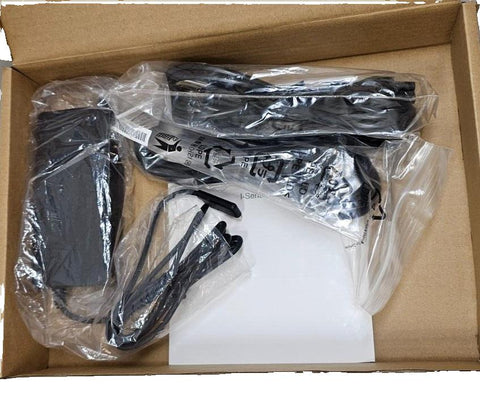

Included Items
Included AccessoriesCable cover locking screw
Speakers Included2 x right / left channel
Dimensions & Weight
Height12.6 inch
Weight11.46 lbs
Width20.7 inch
Depth2.1 inch
Physical Characteristics
ColorBlack
Color CategoryBlack
Certifications & Listings
Compliant StandardsCB, CCC, C-Tick, cUL, FCC, NOM, RCM, S Mark, TUV, UL, VCCI
ENERGY STAR CertifiedYes
Energy Star Version7.1
EPEAT CompliantNo
TCO CertifiedNo
