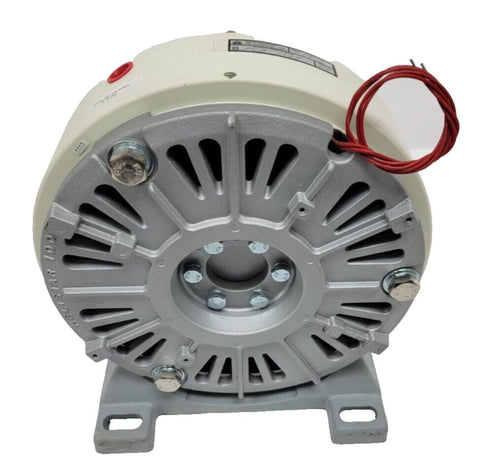

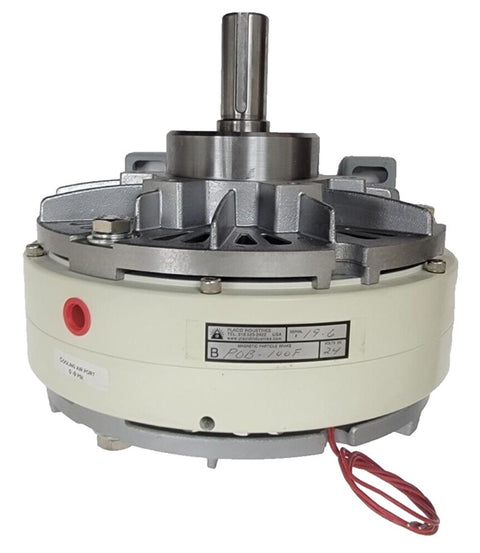

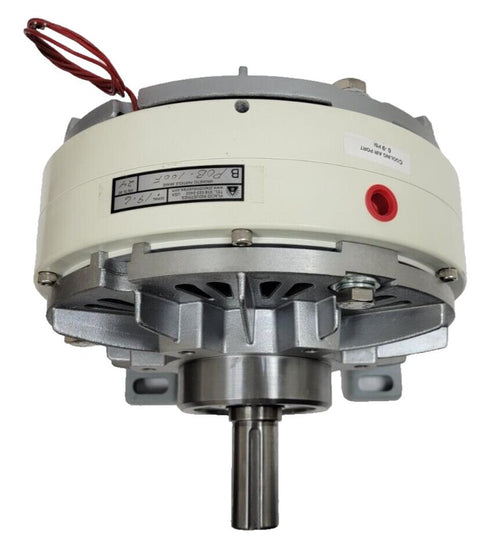

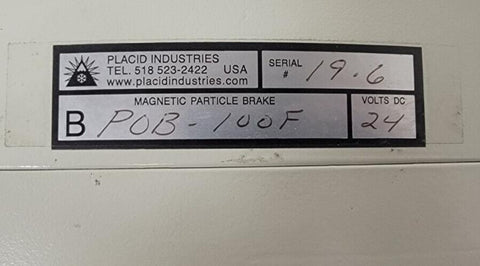

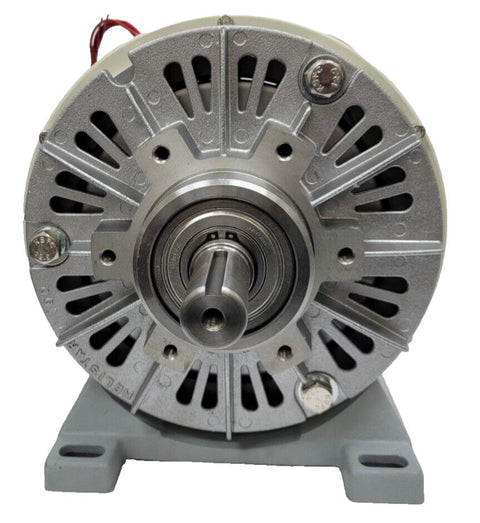

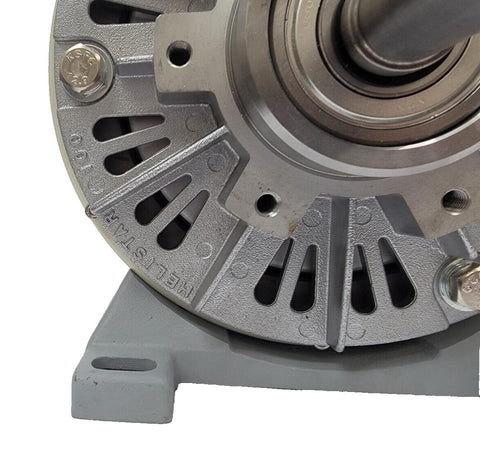

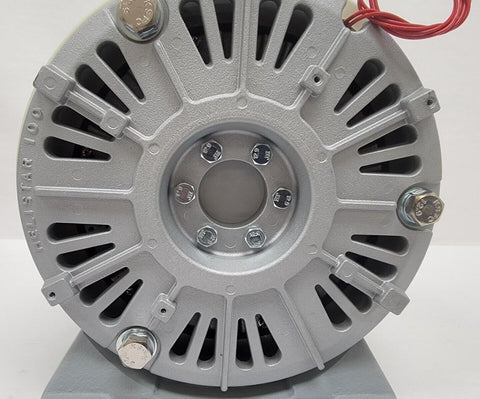

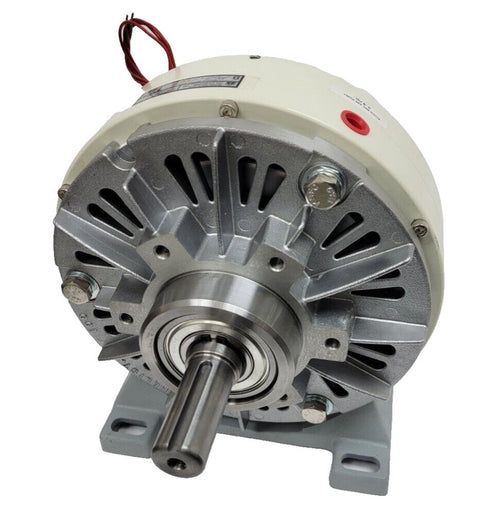

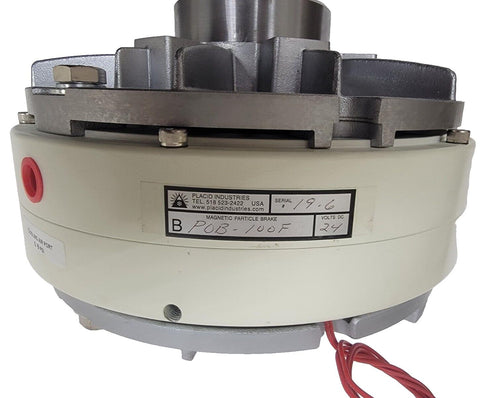

New NiikaCorp Placid Industries Magnetic Particle Brake POB-100F
New old stock, does not contain original packaging. Has some minor shelf wear scuffs and blemishes.
30 day money back guarantee.
Fast US shipping

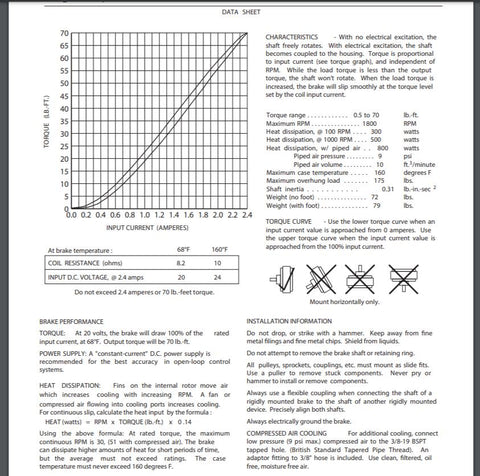

BRAKE PERFORMANCE
TORQUE: At 20 volts, the brake will draw 100% of the rated input current, at 68°F. Output torque will be 70 lb.-ft.

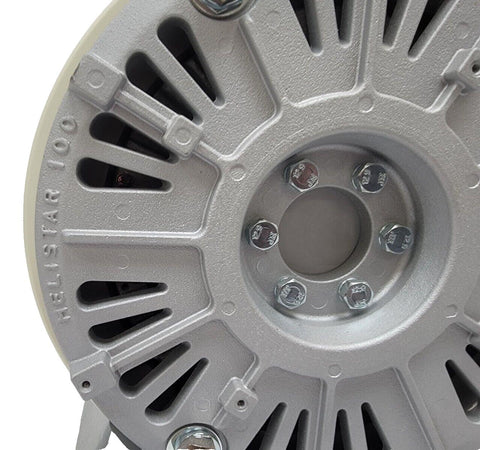

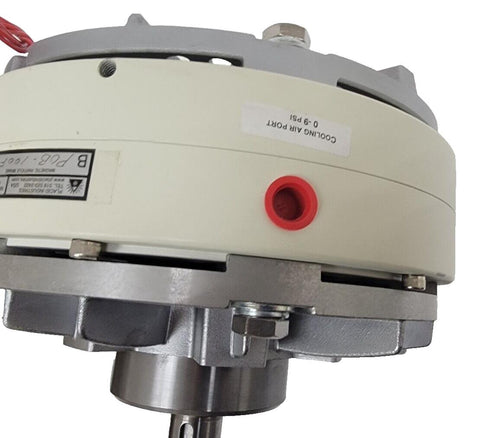

POWER SUPPLY: A "constant-current" D.C. power supply is recommended for the best accuracy in open-loop control systems. HEAT DISSIPATION: Fins on the internal rotor move air which increases cooling with increasing RPM. A fan or compressed air flowing into cooling ports increases cooling. For continuous slip, calculate the heat input by the formula :
HEAT (watts) RPM x TORQUE (lb.-ft.) x 0 .14 Using the above formula: At rated torque, the maximum continuous RPM is 30, (51 with compressed air). The brake can dissipate higher amounts of heat for short periods of time, but the average must not exceed ratings. The case temperature must never exceed 160 degrees F.
