NIB TOA Electronics BA-235 CU 1-Ch Power Amplifier, 35W, For PA/Background Audio
Fast US Shipping
30-Dasy warranty.
MFR SPECS :
The TOA BA-235 Amplifier provides 35 watts of power to 4 ohm, 25 & 70V speakers in installed sound applications. The amplifier features a line input, volume control and recessed treble & bass controls. Amplify background music in restaurants, commercial retail spaces, bars and more. The TOA BA-235 features removable terminal block connectors and is ideal for amplifying audio in a specific zone, or as the main amplifier in any commercial sound / paging audio system.
Massive Power supply for high-quality, reliable sound

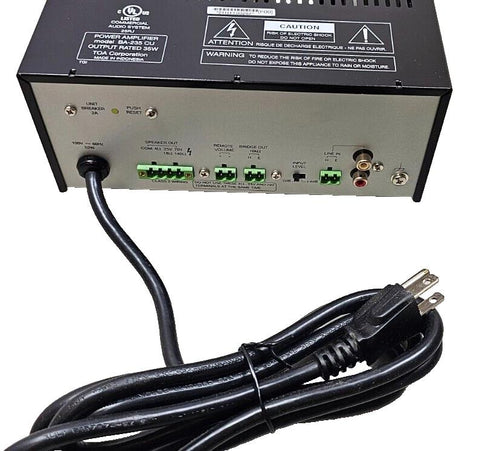

All inputs and outputs on removable Euro-block connections for easier installation
Power outputs available at 4 Ohm, 25V & 70V for more system flexibility
Remote Volume port allows wall panel control of level

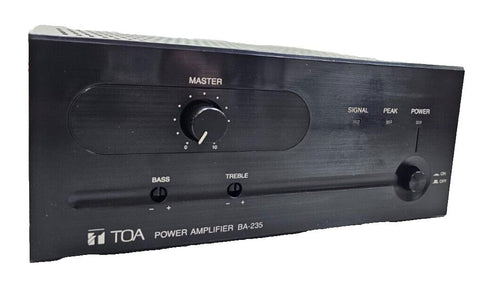

Dedicated Bass & Treble controls (recessed on front panel) allow independent adjustment for main or remote zones
Line Input level selectable between 0dB & +4dB
Summing RCA input also provided
Bridging line output allows signal to be "daisy-chained" from one BA-200 unit to another, giving the capability of multiple zones with separate EQ & Level

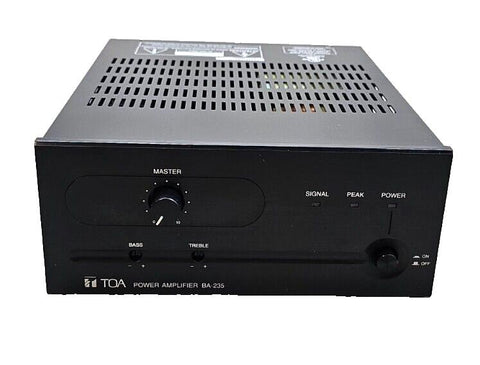

Input Signal present, Peak & Power On indicators on front panel
Supplied security cap (YA-920 x1) for volume knob to prevent unauthorized adjustment
Thermal and overload protection
Amplifier
Form Factor/Type Tabletop
Number of Channels 1
Amplifier Power Rating 35 W
Load Impedance / Voltage 4 Ohms 25 / 70 V
Performance
Frequency Response 50 Hz to 20 kHz
I/O Impedance
MOH Output: 600 Ohms (Balanced)
Line Output: 600 Ohms (Unbalanced)
Input Level
Mic: -60 dB
Line: -10 dB
SNR ≥ 80 dB
Signal Processing
EQ 2-Band
Connectivity
Speaker Outputs Block
Power
AC Input Power 120 VAC, 60 Hz
Physical Dimensions 8.3 x 3.7 x 10.4" / 210.0 x 94.3 x 265.0 mm
Weight 8.8 lb / 4 kg
Packaging Info
Package Weight 10.1 lb
Box Dimensions (LxWxH) 13.7 x 11.1 x 5"
