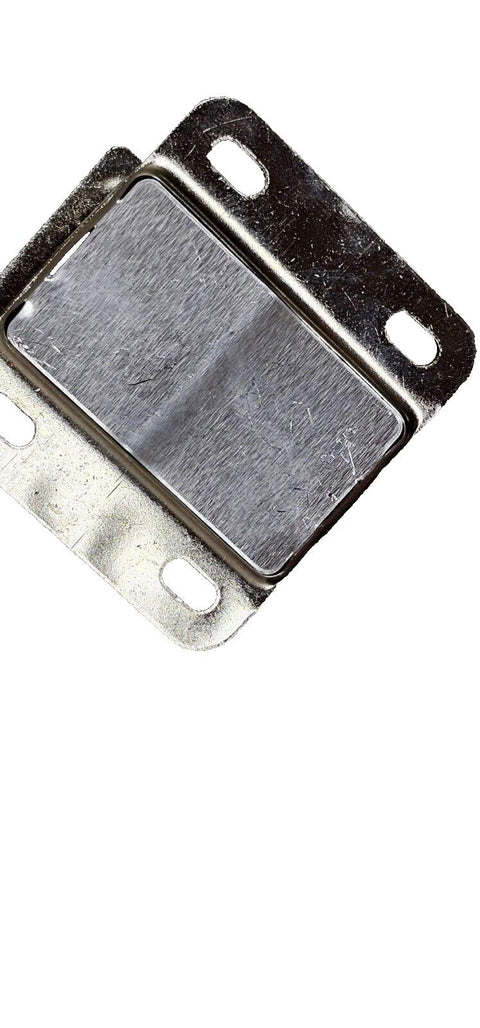

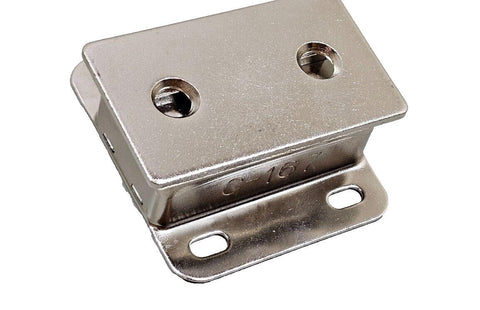

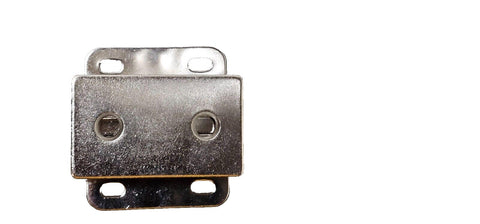

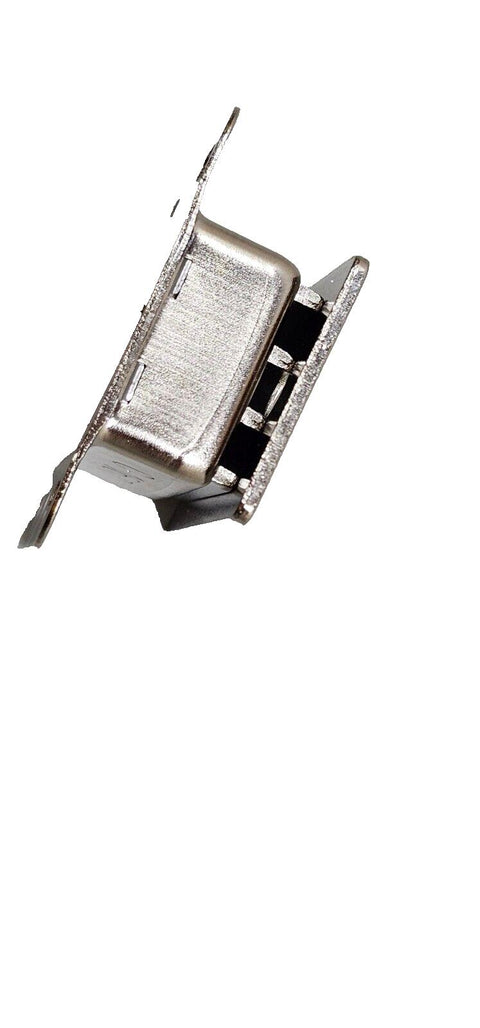

Strong magnets! These are a bit more heavy duty than your run of the mil catches. These were from a machine shop building robots. Higher end product than average. Very well made!! They're about 12$ USD + S/H retail.
| Type | Magnetic Catch | Magnet Type Category | Square shape |
|---|---|---|---|
| Adsorption Power(N) | 166 | Length L(mm) | 44 |
| Width W(mm) | 50 | Mounting Method | Imposition |
| Mounting Hole Dia. D(mm) | 3.6 | Magnet Square Mounting Surface | A |
| Holding Plate | Available | Operating Environment | Standard |
| Body Material | Brass | Main Body Surface Treatment | Nickel plating |
| Backing Plate Material | Cold rolled steel plate (EN 1.0330 Equiv.) | Backing Plate Surface Treatment | Nickel plating |
| Magnet Material | [Ferrite] Ba-Ferrite (anisotropic) | Magnet Surface Treatment | NA |
| Height h(mm) | 16 | Product Code | 20478 |
| RoHS | 10 |
