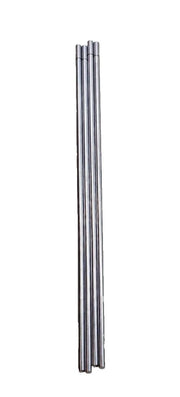

Total Length 420mm
Retaining ring groove depth : 20mm
Shaft diameter 8mm
Made of 304 Stainless Steel
Tapped on opposite end of retaining ring groove.
Going through the build a diagram. We were able to configure a system that would be similar to this Part number, but we are not 100% certain. We built it out with no additional features such as degreasing / cleaning, or heat treatment.
30-day warranty!
Thank you
SL-SSFRBF-D8-L420-M6-U20
| Shape | Straight | Shaft Diameter D(mm) | 8 |
|---|---|---|---|
| Left End Shape | Tapped | Right End Shape | Retaining Ring Groove |
| Material | 304 Stainless Steel | Heat Treatment | Not Hardened |
| Surface Finish | None | Keyway | Keyway Option (Alteration) |
| Shaft Diameter Tolerance (Metric) | g6 (Ground) | Length L(mm) | 420 |
| Cleaning Method | Degreasing | Usage | General |
| Left End Shape | B | Right End Shape | F |
| F(mm) | - | B(mm) | - |
| H(mm) | - | P(mm) | - |
| Coarse Thread [M] Depth=Mx2(mm) | 6 | Change to Fine Thread [PMC] | - |
| T(mm) | - | S(mm) | - |
| U(mm) | 20 | Q(mm) | - |
| Coarse Thread [N] Depth=Nx2(mm) | - | Change to Fine Thread [QNC](mm) | - |
| R(mm) | - | W(mm) | - |
| Material Certificate | Available | - | - |
