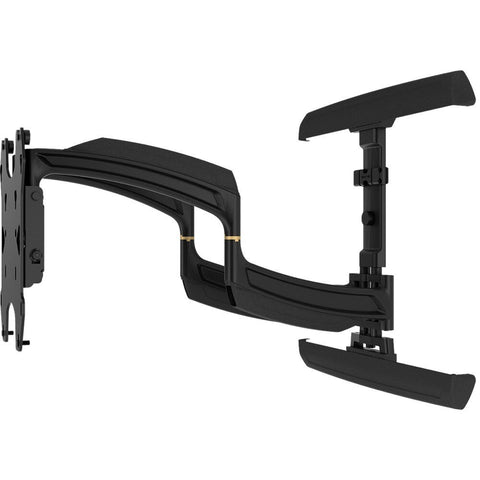

The Chief TS325TU THINSTALL Dual Swing-Arm Wall Mount is a suitable way to achieve flexible viewing options for displays measuring from 26 to 52" and weighing up to 75 lb. This mount extends from 1.3" to 25" from the wall and offers a downward tilt up to 15° and a pivot adjustment up to ±90°, depending on the display's width. Post-installation, you can further adjust the display's lateral position up to 16" and height up to 1" for your preferred screen placement. The mount maintains a clutter-free look via tool-free cable covers and an open wall plate design, which tucks in loose wires for a seamless installation.
Model TS325TU
Manufacturer Chief Mounts
Part Number TS325TU
UPC 841872151120
Color Black
Lateral Shift 16" (406.4mm)
Manual Height Adjustment 1"
Maximum Extension 25.7" (652.8mm)
Maximum Screen Thickness 5" (127mm)
Minimum Depth 1.8" (46 mm)
Mounting Pattern 100 x 100mm - 600 x 400mm
Overall Dimensions 17.2" x 29.5" x 1.8" (437 x 749 x 46mm)
Pivot ±90° (depending on screen width)
Tilt + 0 degree, - 15 degree
Screen Size 30 - 52 in
Wall Stud 16"
Weight Capacity 75 lbs (34.kg)
Shipping Weight 31.30 lbs
Mounting Options Wall
