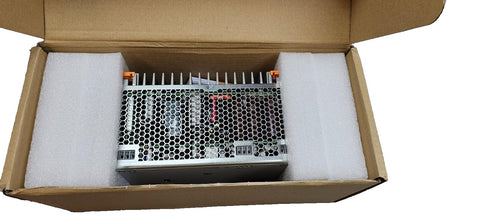

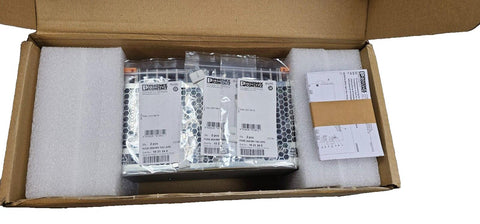

Product was removed from original packaging as it was being prepared for installation in device. Final installation never occurred, product remained on shelf, not in packaging until we received it.

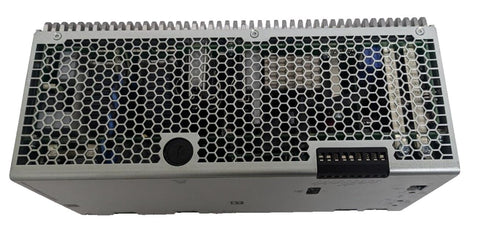

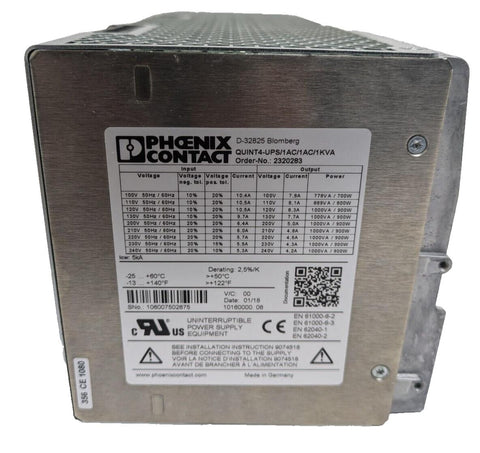

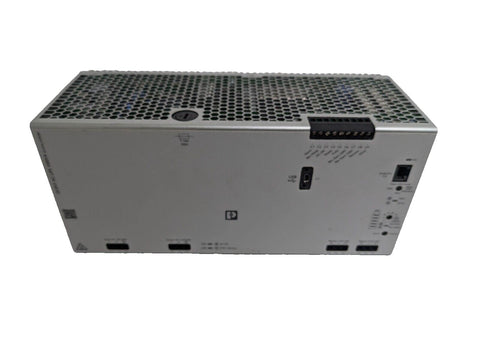

Uninterruptible power supply with IQ technology for DIN rail mounting. Input: 120/230 V AC, output: 120/230 V AC/1 kVA. Provides information regarding the state of charge, remaining runtime, and service life of the rechargeable battery module at any time, thereby increasing system availability.
Features
- Can be switched in parallel for redundancy and increased performance
- Startup from energy storage possible, even without mains input
- USB interface for connecting to industrial PCs, for example
- Pure sine curve in mains and battery operation
- Smooth transition due to online topology
Tech Specifications
| Width | 290 mm |
| Height | 130 mm |
| Depth | 125 mm |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C (> 50 °C Derating: 2.5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C (with charged energy storage device) |
| Max. permissible relative humidity (operation) | = 95 % |
| Climatic class | 3K3 (EN 60721) |
| Degree of pollution | 2 |
| Installation height | = 3000 m (> 2000 m, observe derating) |
| Nominal input voltage | 100 V AC -10 % / +20 % |
| Nominal input voltage | 110 V AC -10 % / +20 % |
| Nominal input voltage | 120 V AC -10 % / +20 % |
| Nominal input voltage | 130 V AC -10 % / +20 % |
| Nominal input voltage | 200 V AC -20 % / +20 % |
| Nominal input voltage | 210 V AC -20 % / +20 % |
| Nominal input voltage | 220 V AC -20 % / +20 % |
| Nominal input voltage | 230 V AC -20 % / +15 % |
| Nominal input voltage | 240 V AC -20 % / +10 % |
| Input voltage range | 90 V AC ... 264 V AC |
| AC frequency range | 45 Hz ... 65 Hz |
| Buffer period | 1 h (38 AH) |
| Permissible backup fuse | B16 230 V AC |
| Power factor (cos phi) | 0.9 |
| Nominal output voltage | 100 V AC |
| Nominal output voltage | 110 V AC |
| Nominal output voltage | 120 V AC |
| Nominal output voltage | 130 V AC |
| Nominal output voltage | 200 V AC |
| Nominal output voltage | 210 V AC |
| Nominal output voltage | 220 V AC |
| Nominal output voltage | 230 V AC |
| Nominal output voltage | 240 V AC |
| Nominal output current (IN) | 7.8 A (100 V AC) |
| Nominal output current (IN) | 8.1 A (110 V AC) |
| Nominal output current (IN) | 8.3 A (120 V AC) |
| Nominal output current (IN) | 7.7 A (130 V AC) |
| Nominal output current (IN) | 5 A (200 V AC) |
| Nominal output current (IN) | 4.8 A (210 V AC) |
| Nominal output current (IN) | 4.5 A (220 V AC) |
| Nominal output current (IN) | 4.3 A (230 V AC) |
| Nominal output current (IN) | 4.2 A (240 V AC) |
| POWER BOOST (IBoost) | 13 A (120 V AC) |
| POWER BOOST (IBoost) | 7 A (230 V AC) |
| Derating | > 50 °C ... 60 °C (2.5%/K) |
| Connection in parallel | Yes, 2 |
| Connection in series | No |
| Maximum power dissipation in no-load condition | typ. 17 W (120 V AC) |
| Maximum power dissipation in no-load condition | typ. 25 W (230 V AC) |
| Net weight | 5 kg |
| Efficiency | > 92 % (120 V AC) |
| Efficiency | > 94 % (230 V AC) |
| Protection class | I |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | 217546 h (230 V AC, at 40 °C) |
| Connection Method | Screw connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section AWG min. | 30 |
| Conductor cross section AWG max. | 10 |
| Stripping length | 8 mm |
| Connection Method | Screw connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section AWG min. | 30 |
| Conductor cross section AWG max. | 10 |
| Stripping length | 8 mm |
| Connection Method | Screw connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 30 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 8 mm |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise immunity | Noise immunity according to EN 62040-2-2006 |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | 4 kV (Test Level 2) |
| Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 |
| Frequency range | 0.15 MHz ... 80 MHz |
| Voltage | 10 V |
| Conducted noise emission | EN 62040-02 (Class C2) |
| Standards/regulations | EN 61000-4-8 |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| UL approvals | UL/C-UL Recognized UL 1778 |
| Shock | 15g in all directions (EN 60068-2-27) |
| Vibration (operation) | 5 Hz ... 100 Hz, 0.7g (EN 60068-2-6) |
| Overvoltage category (EN 60950-1) | II |
| REACh SVHC | Lead 7439-92-1 |
| Discharge in air | 8 kV (Test Level 3) |
| Input | 2 kV (Test Level 3 - asymmetrical) |
| Output | 2 kV (Test Level 3 - asymmetrical) |
| Signal | 2 kV (Test Level 3 - asymmetrical) |
| Signal | 1 kV (Test Level 2 - asymmetrical) |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Installation distance right/left | 5 mm / 5 mm |
| Installation distance top/bottom | 50 mm / 50 mm |
| Harmonic currents | EN 61000-3-2 (Class A) |
| Flicker | EN 61000-3-3 |
